Quick Time Bellhousing - SBC & BBC Chev - RM-6023
Quick Time Bellhousing - SBC & BBC Chev - RM-6023

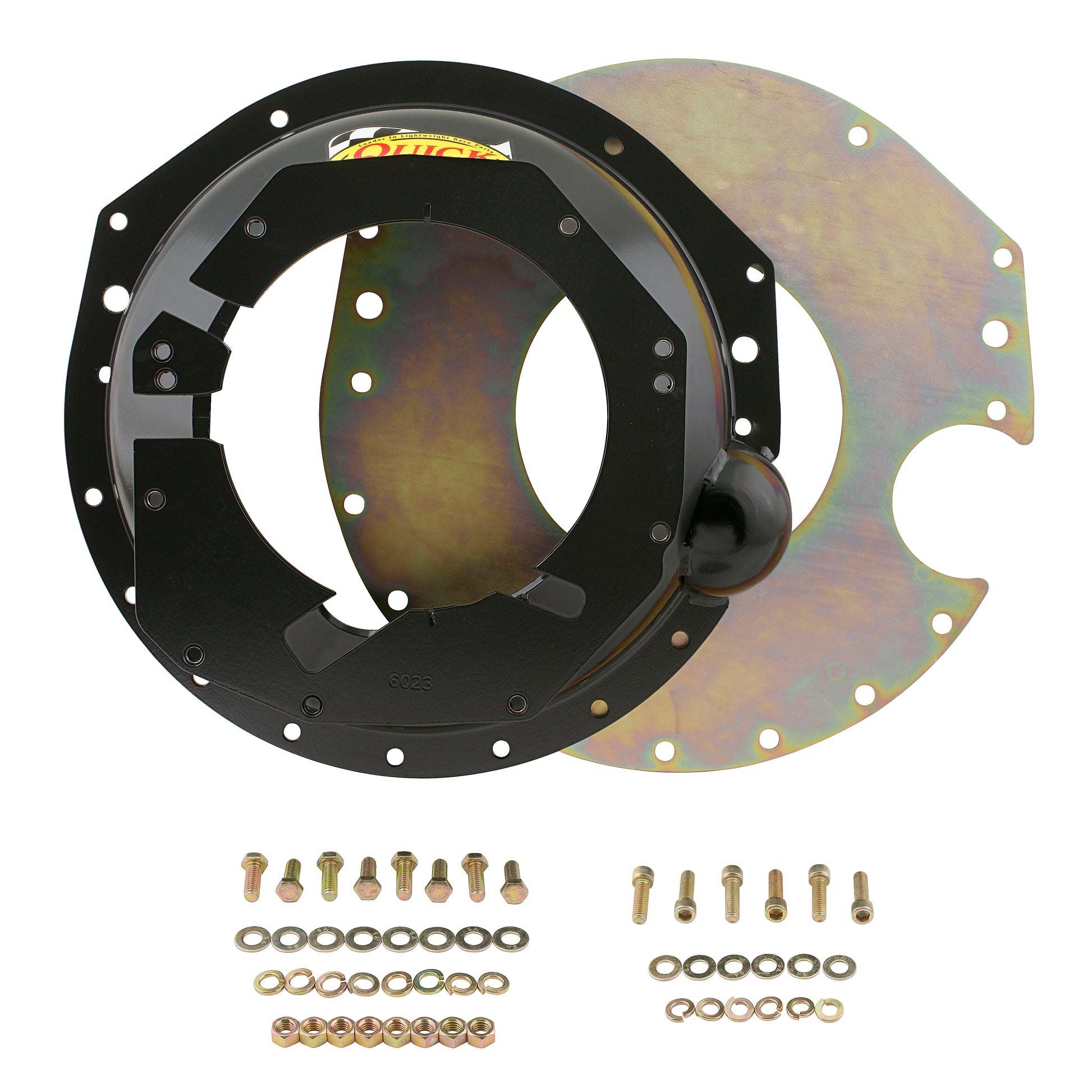

The Quick Time RM-6023 bellhousing connects a small-block or big-block Chevy Engine to T56 Chevy LS, T56 Magnum and T56 Magnum-XL transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
Specs:
| Brand | Quick Time |
|---|---|
| Category | Transmission |
| Certification | 6.1 SFI |
| Clutch | 11" IN |
| Clutch Diameter | 11" |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| GM Big Block | |
| Engine Make | Chevrolet |
| Engine Plate | RM-6023-C |
| Finish | Semi-gloss |
| Flexplate | 153/168 Tooth |
| Flywheel | 153/168 Tooth |
| Grade Type | Performance |
| Height | 5.950 inch |
| Included Hardware | Engine plate and grade 8 bolts |
| Make | Chevrolet |
| Material | Steel |
| Part Type | Transmission Bell Housing |
| Patented | yes |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Sub Category | Transmission Hard Parts |
| Transmission | T56 GM |
| T56 Magnum | |
| Transmission Type | Manual |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Weight | 22# |
| Weight (lb) | 22 |
| UPC | 084041027882 |
| Part Number | RM-6023 |
