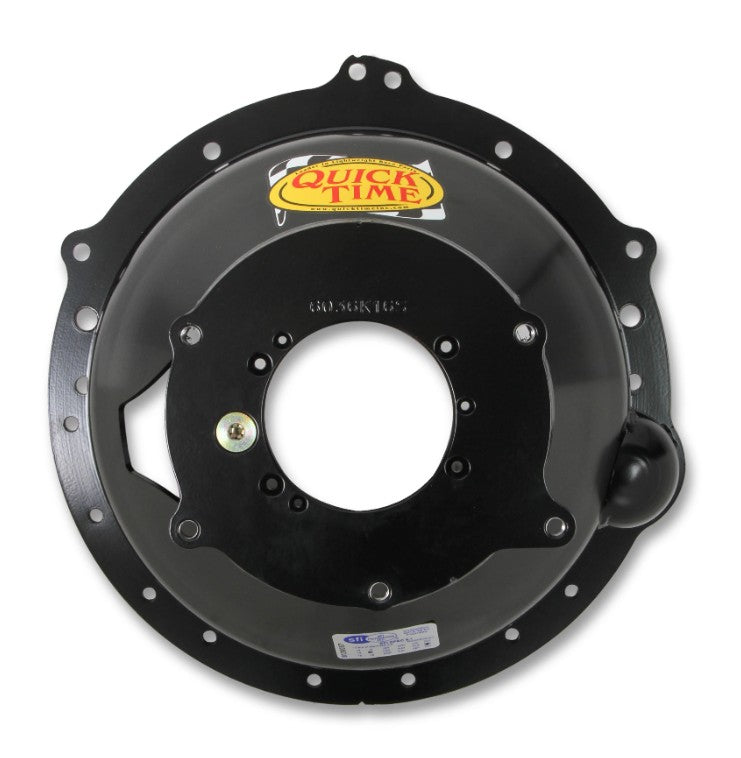

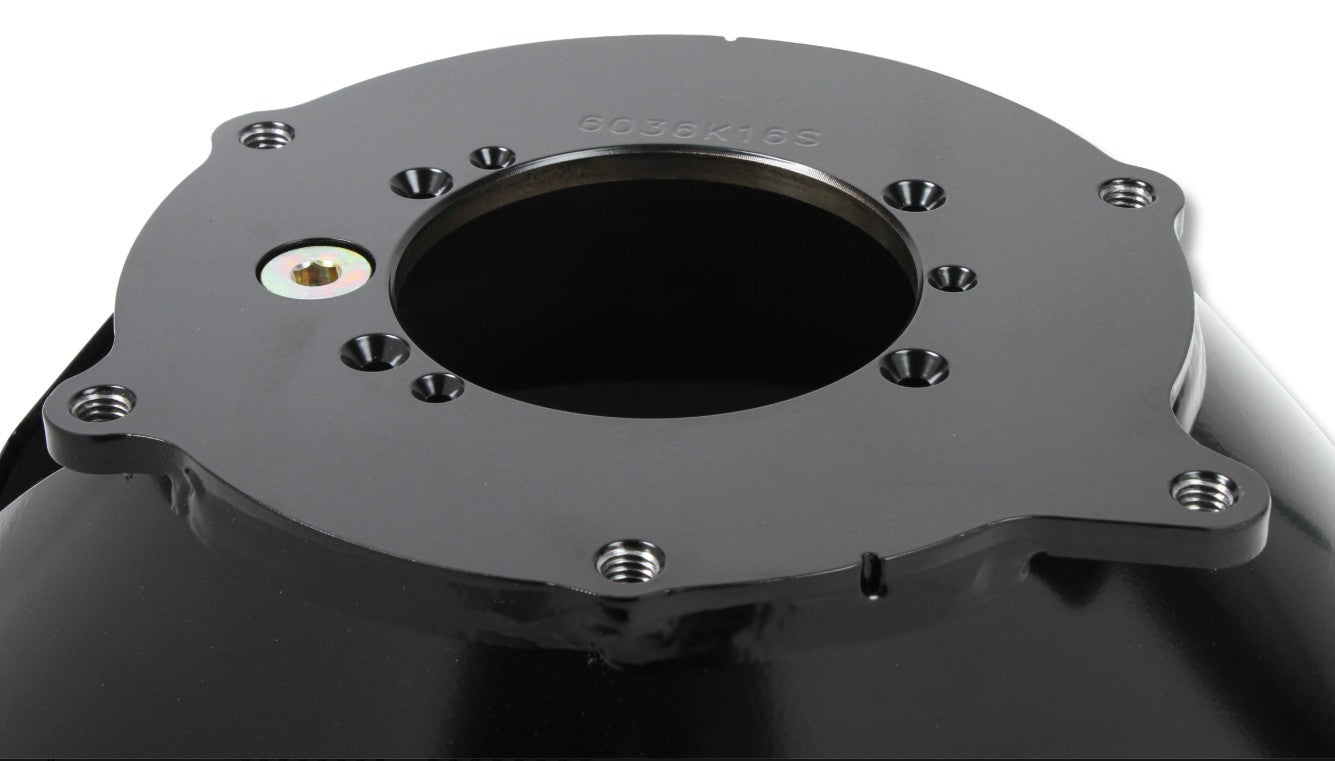

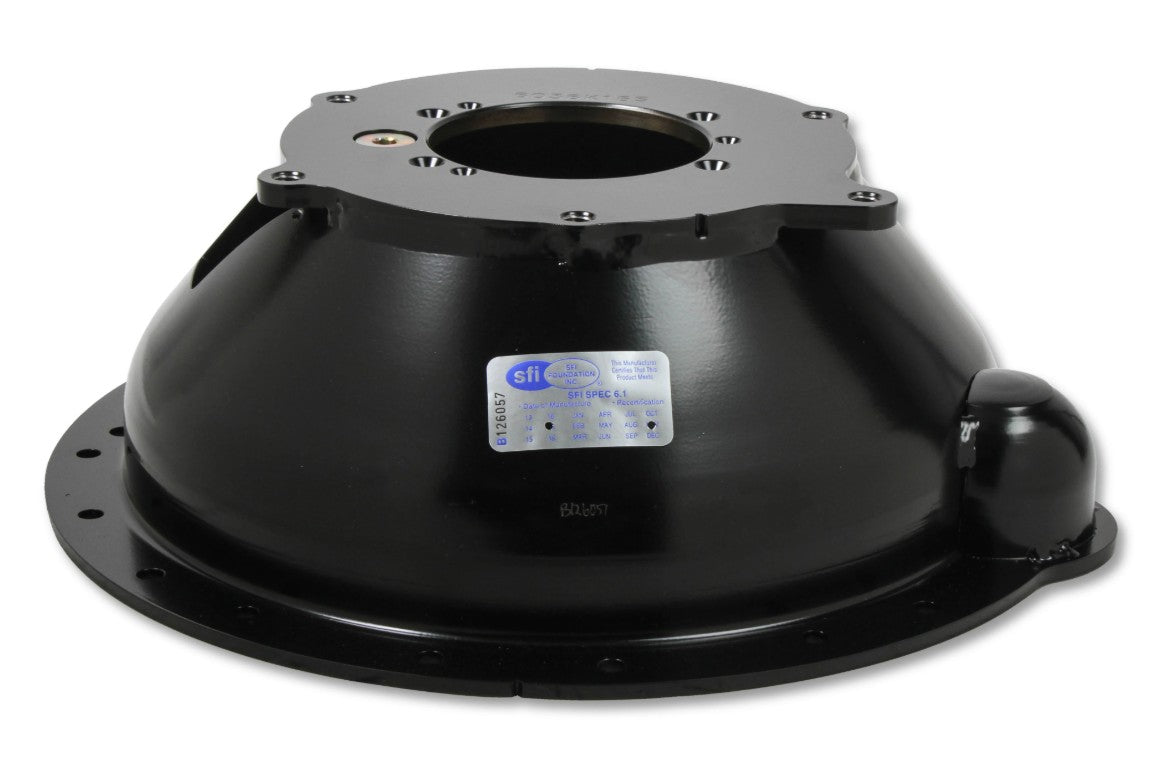

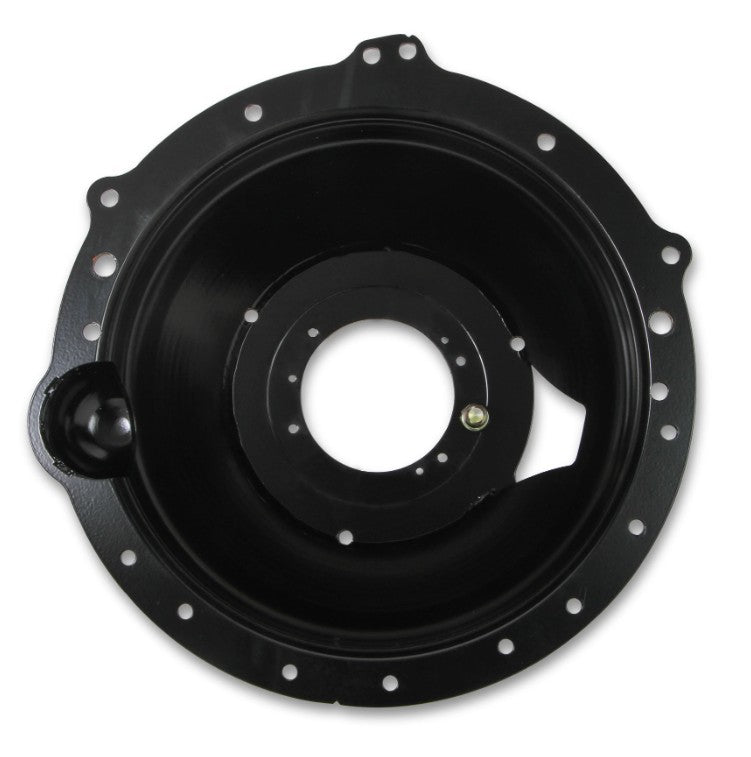

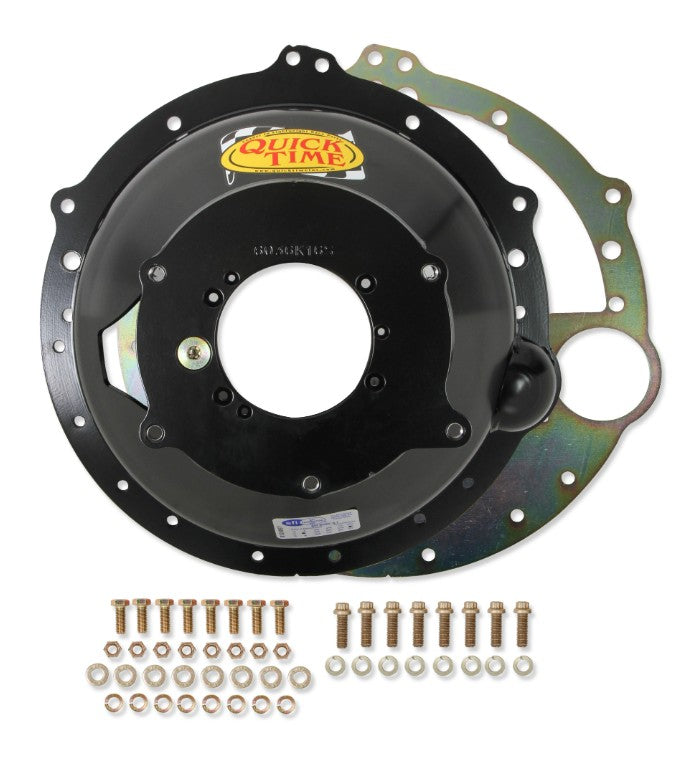

Quick Time Bellhousing - Chevy LS and Late Model LT - RM-6036

The Quick Time RM-6036 bellhousing connects GM LS engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner, T10, TREMEC TKO, and TKX transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

Specs:

Brand	Quick Time
Category	Transmission
Certification	6.1 SFI
Clutch Operation	Mechanical or Hydraulic
Color	Black
Emission Code	5
Engine	Chevy LT1
	Chevy LT4
	GM Gen III/IV (LS)
Engine Make	Chevrolet

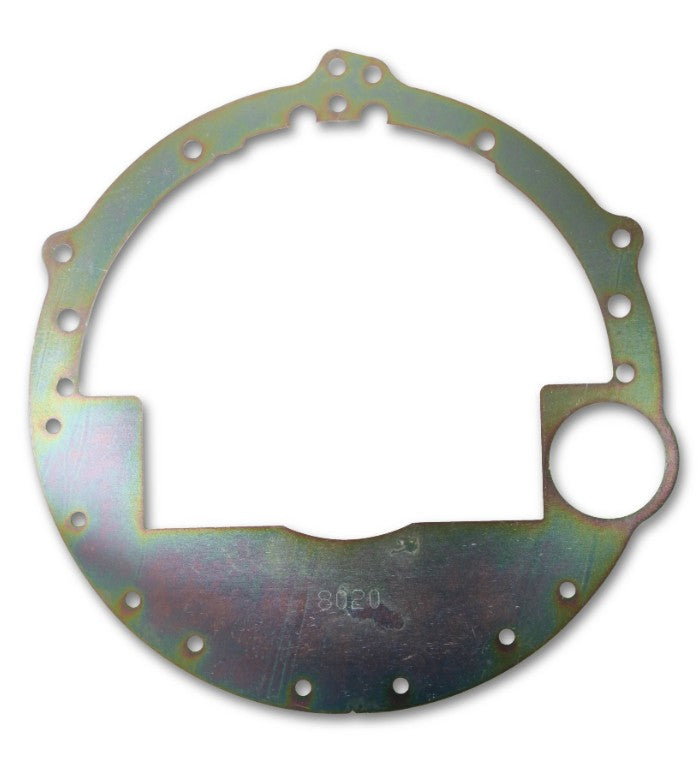

Engine Plate	RM-8020-C
Finish	Semi-gloss
Flywheel	153/168 Tooth
Height	6.000 inch
Make	Chevrolet
Material	Steel
Part Type	Transmission Bell Housing
Patented	yes
Product Type	Bellhousing
SFI Approved	Yes
SFI Certification	6.1
Starter	OE
Sub Category	Transmission Hard Parts
Trans Bore	4.688
Trans. Bore Diameter	4.687 inch
Transmission	Bert Racing
	Brinn Racing
	Falcon
	Jerico
	Muncie
	Richmond
	Saginaw
	T10
	T5 GM
	TKO 500/600 GM
	TKX GM
Transmission Type	Manual
Warranty	Manufacturer's Limited 90 Day Warranty
Weight	22#
Weight (lb)	22
UPC	084041029015
Part Number	RM-6036
