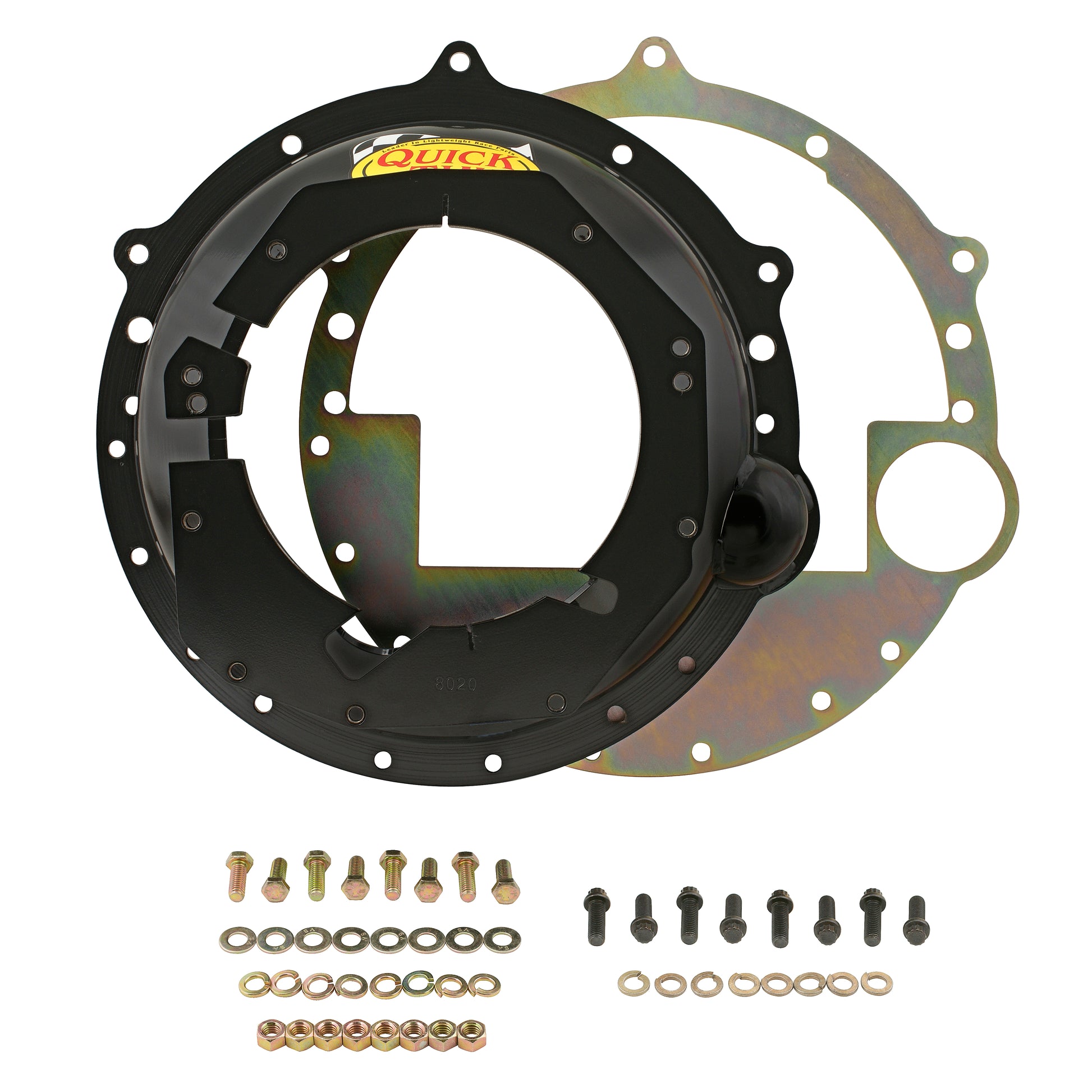

Quick Time Bellhousing - Chevy LS and Late Model LT - RM-8020

Quick Time Bellhousing - Chevy LS and Late Model LT - RM-8020

The Quick Time RM-8020 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 - Current) engines to T56 Chevy LS, and T56 Magnum transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

Specs:

Brand Quick Time
Category Transmission
Certification 6.1 SFI
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevy LT1
Chevy LT4
GM Gen III/IV (LS)
Engine Make Chevrolet
Engine Plate RM-8020-C
Finish Semi-gloss
Flywheel 168 Tooth
Height 5.5
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Sub Category Transmission Hard Parts
Transmission T56 GM
T56 Magnum
Transmission Type Manual
Warranty Manufacturer's Limited 90 Day Warranty
Weight 20#
Weight (lb) 20
UPC 084041030011
Part Number RM-8020
Regular price $1,980.00 AUD
Regular price Sale price $1,980.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
